4H-TECH short shift type K2-Shift for the F40 transmissions (05-2016 and younger)
This 4H-TECH K2-Shift is especialy designed for the newer model F40 Transmissions which are fitted with the upgraded shifter shaft (All Opel/Vauxhall from model year 2017 and younger). This K2 Shift is a next version of our very popular K-Shift. (which is still available for the older type F40 transmissions from 2013-2017)
A real power shifter which reduces shift times, so up coming gears can be engaged faster. By fitting this shift linkage you will have a gear throw shortening of about 30%.

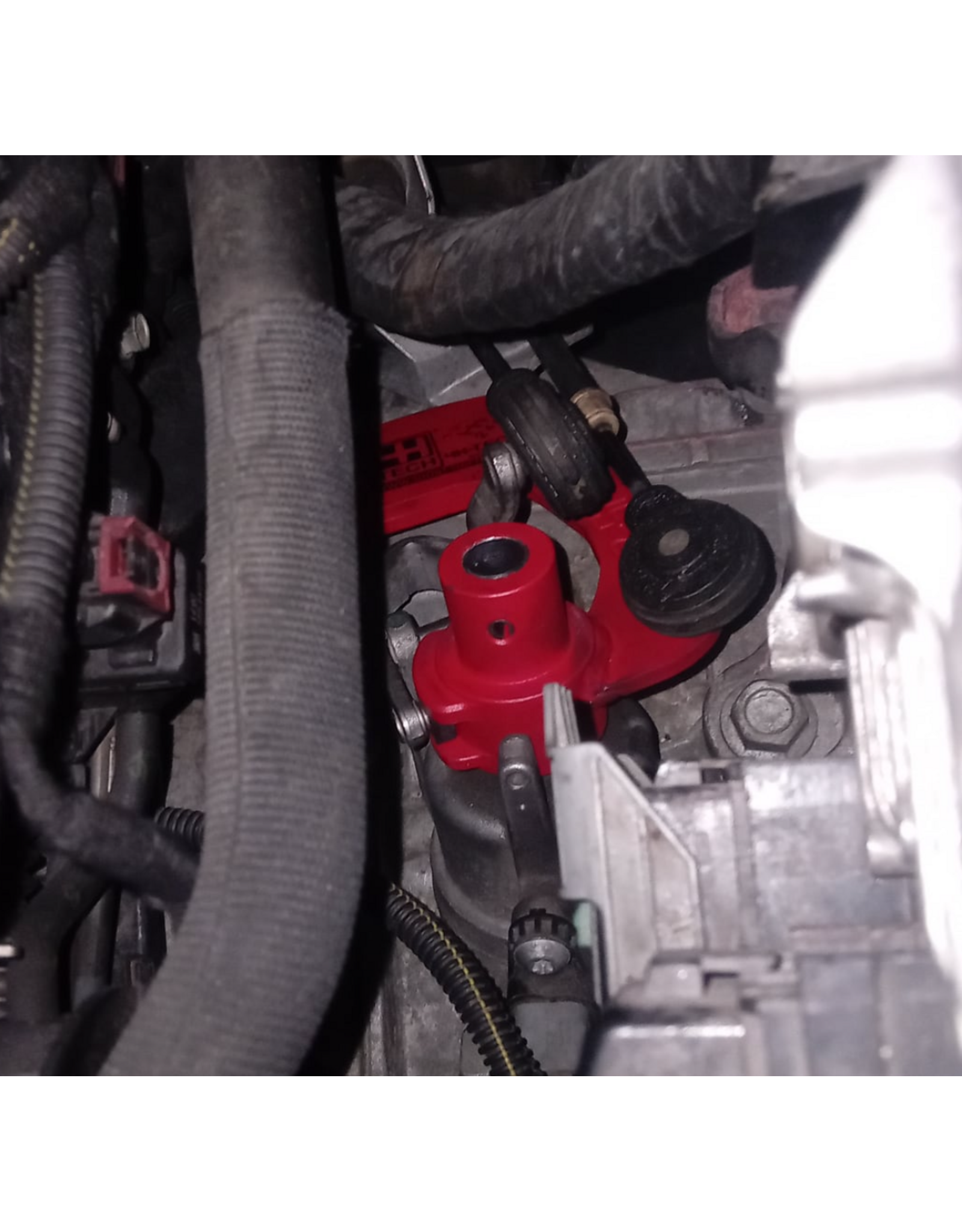

The factory gear stick model and height remains unchanged. The short shifter will be fitted on top of the gearbox where the shift linkage is located. Gear changes are much quicker and precise.
One of the must have modifications to your car!
Shifting with this K2 Short shifter feels almost like a rally sequential gearbox, "click-clack"
- Improves performance
- Faster Shifting
- Made and designed in the Netherlands by 4H-TECH
- 30% Shortened gear throw
- Easy to install and operate
- Made of very high quality tensile steel
- Hardened inner parts
- 4H-TECH Red powder coating
- Completely reversible to stock
- No modification necessary to the gear stick itself.
- No re-adjustments required
- No special tools required
- Patented design
- Shift linkage from high quality tensile Steel
- Fitting pin
- Copper ring
- Locking pin
- 4H-TECH Sticker
- Fitting instructions
- Opel Astra-J OPC 2016->
- Opel Zafira 1.6 CDTi and 2.0 CDTi 2016->
- Opel Insignia 2.0 Turbo, 2.8 V6 Turbo and 2.0 CDTi 160/165/170/195 Bhp 2016->
- Opel Insignia B 2.0 Turbo Diesel
- Vauxhall Astra-J VXR 2016->
- Vauxhall Zafira 1.6 CDTi and 2.0 CDTi 2016->
- Vauxhall Insignia 2.0 Turbo, 2.8 V6 Turbo and 2.0 CDTi 160/165/170/195 Bhp 2016->
- Vauxhall Insignia B 2.0 Turbo Diesel
The F40 gearbox in your car can be fitted with 4 different types of shifter systems.
They are all complete different from each other.
It depends on the year of manufacture which shifter system is fitted by GM.
Not sure which 4H-TECH Short Shifter will fit your F40 gearbox?Still not sure if this K2-Shift will fit your car? No problem. Just send us an email ([email protected]), and put the VIN number (chassis number) of your car in it. We will reply as soon as possible with the answer if this K2-Shift will fit your car.
Here's a little help! (click)
Product Installation Instructions:
- Click here for Installation Instructions for this Product. (Fitting instruction shows the fitment of a Q2-Shift, but it is basicly the same way as fitting a K2-Shift.)
- Spring pin size: 6mm (info when ordering a drift punche tool)
